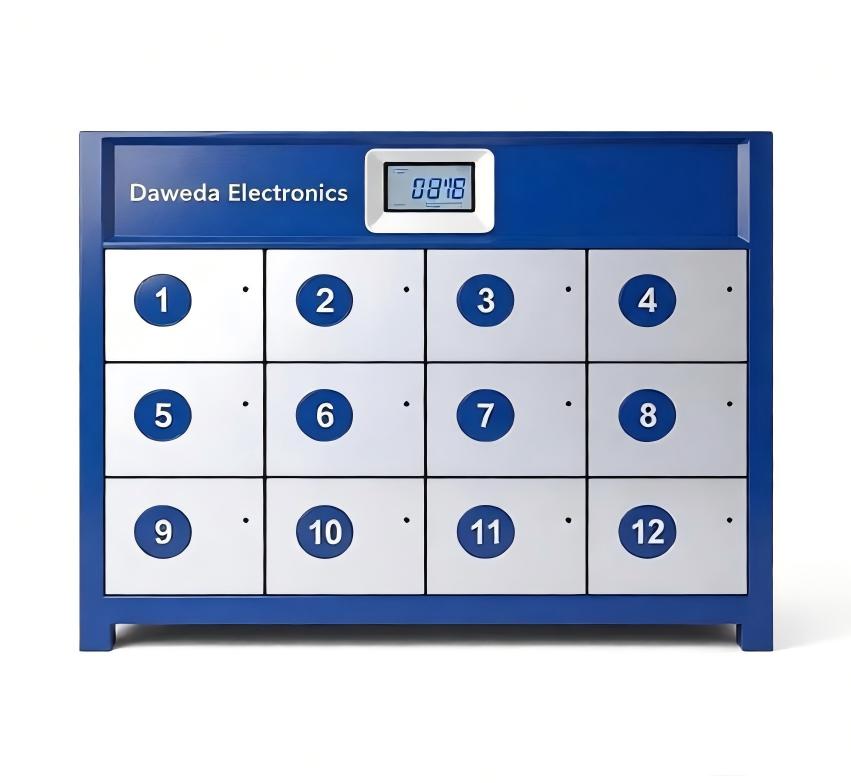

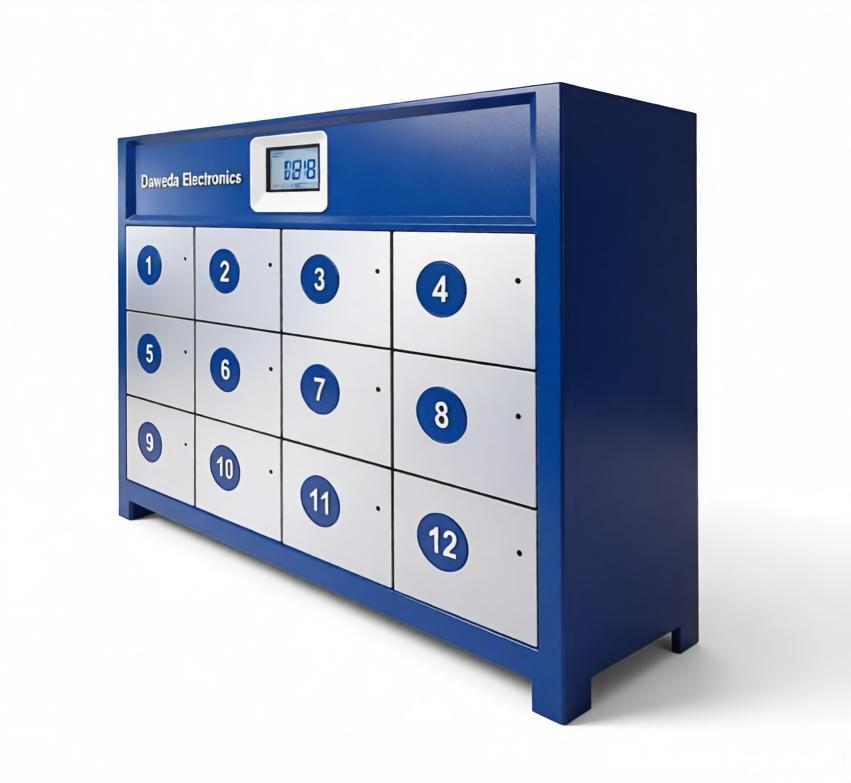

Daweda 12 Cabinets 15.8KW Smart Battery Swap Station
Daweda Battery Swap — No Wait, More Rides, More Profit!
12 compartments with customizable apperance, voltage & power adjustable, tailored for African &Asian EV fleets. 30s swap, zero downtime, maximize operational efficiency,no trouble with unstable local power grids.
Smart, tough and reliable battery swap solutions for 2-wheel and 3-wheel EV riders, plus all kinds of fleet operators.
Description
Specifications
| Itmes | Value |
| Input voltage | AC150~270V |
| Input current (Max) | 115A |
| Battery type | 48V /60V/72V 27-100AH Li-ion |
| Charging voltage | 52V~88V |
| Charging current of single (Max) | 15A |
| Charging power of single (Max) | 1320W |
| Charge method | MCU intelligent control
25A(SOC≤80%) |
| Charging cable Hot-plug life | 10000 times |
| Charging Plug Type | Multiple |
| Operation temperature | 0-45℃ |
| Cabinet Material | SPCC (Steel Plate Cold） |
| IP Grade | IP54 |
| Size | L1866mm*W744mm*H1600mm |
| Instruction | Charging Display Screen / LED Indicators |
Key Features
- Fast & Flexible Cloud Managed Battery Exchange for electric motorcycle, scooter, tricycle
- 1) 12 Cabinets 15.8 KW
- 2)Visual Operation Management.
- 3)2G/4G + OCPP, real‑time KPI dashboards
- 4)Suitable for 48v/60v/72v lithium battery.
- 5)Intelligent cloud platform management system.
- 6)Short swap within 60 seconds
